Description

Automatic water lifting units, suitable for domestic use,
small installations for civil, agricultural, industrial use,
washing and hobby applications.

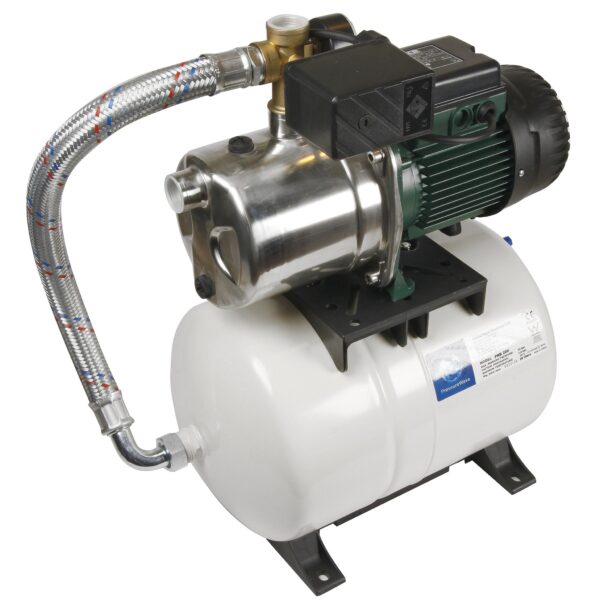

The unit is equipped with a JET or JETINOX type self-priming
electro-pump, 20lt expansion vessel, pressure switch for
automatic operation, pressure gauge, fitting kit between
pump and motor, all pre-assembled

Features

Horizontal tank, 20 litres capacity type, inner single
diaphragm high-grade butyl membrane and virgin
polypropylene liner, complete with stands at the bottom
and brackets for fixing the pump to the top

Operating range: up to 5.4 m3/h with head up to 61
metres
Liquid temperature range:
from 0°C to +35°C for domestic use
from 0°C to +40°C for other use
Pumped liquid characteristics: clean, free from solids
or abrasive substances, not viscous, not aggressive, not
crystallised and chemically neutral
Maximum ambient temperature: +40°C
Maximum working pressure: 8 bar (800 kPa)
Protection level: IP 44 (IP 55 terminal board protection)
Insulation class: F
