Atlas UV ‘L’ Range
£342.00 – £732.00Price range: £342.00 through £732.00 (Ex VAT)
Categories: UV Sterilisers Systems
The Atlas range is designed for reliable disinfection of drinking water and can treat flows from 11.4 l/min (0.7 m/hr) up to 79 l/min (4.8 m/hr). These units benefit from advanced polished stainless steel chambers coupled to a unique and innovative controller featuring a user friendly colour LCD display which gives really meaningful user feedback messages (see examples below).
L Range units utilise low power lamps so these units can be used in all applications, even those with long periods of no water flow i.e. domestic applications. Why choose Atlas UV?
- Intuitive colour user interface.
- Simple plug and play installation
- Upgradeable platform (you can add a UV sensor or other options in the future if your needs change)
- QR codes allow a direct link for service support and spare parts Simple twist and turn lamp change
- Superb warranty
- Quality Canadian manufacture with full UK based sales support, spares and backup
- WRAS Approved Unit
- Features Polished stainless steel Axial flow chamber Upgradable with UV sensor and volt free contact options at any time Integrated glow plug for visual lamp status check True 9000 hour (1 year) lamp life
- Controller Features Colour user interface with full diagnostics and warnings including QR (2D) codes IEP (Infinite Expandability Port) for future upgrades and options
- Splash-proof controller with highly efficient electronic ballast Advantages Reliable and effective disinfection
- Easy to install, operate and maintain Constant lamp status monitoring and feedback
| Model | Maximum treatment capacity* |
|---|---|
| L12 | 11.4 L/min (0.7 m3/hr) |
| L22 | 22.7 L/min (1.4 m3/hr) |
| L41 | 41.0 L/min (2.5 m3/hr) |
| L57 | 56.8 L/min (3.4 m3/hr) |
| L79 | 79.0 L/min (4.8 m3/hr) |
| *at a UV dosage of 30mJ/cm2 and a transmission (T10) of 95% | |

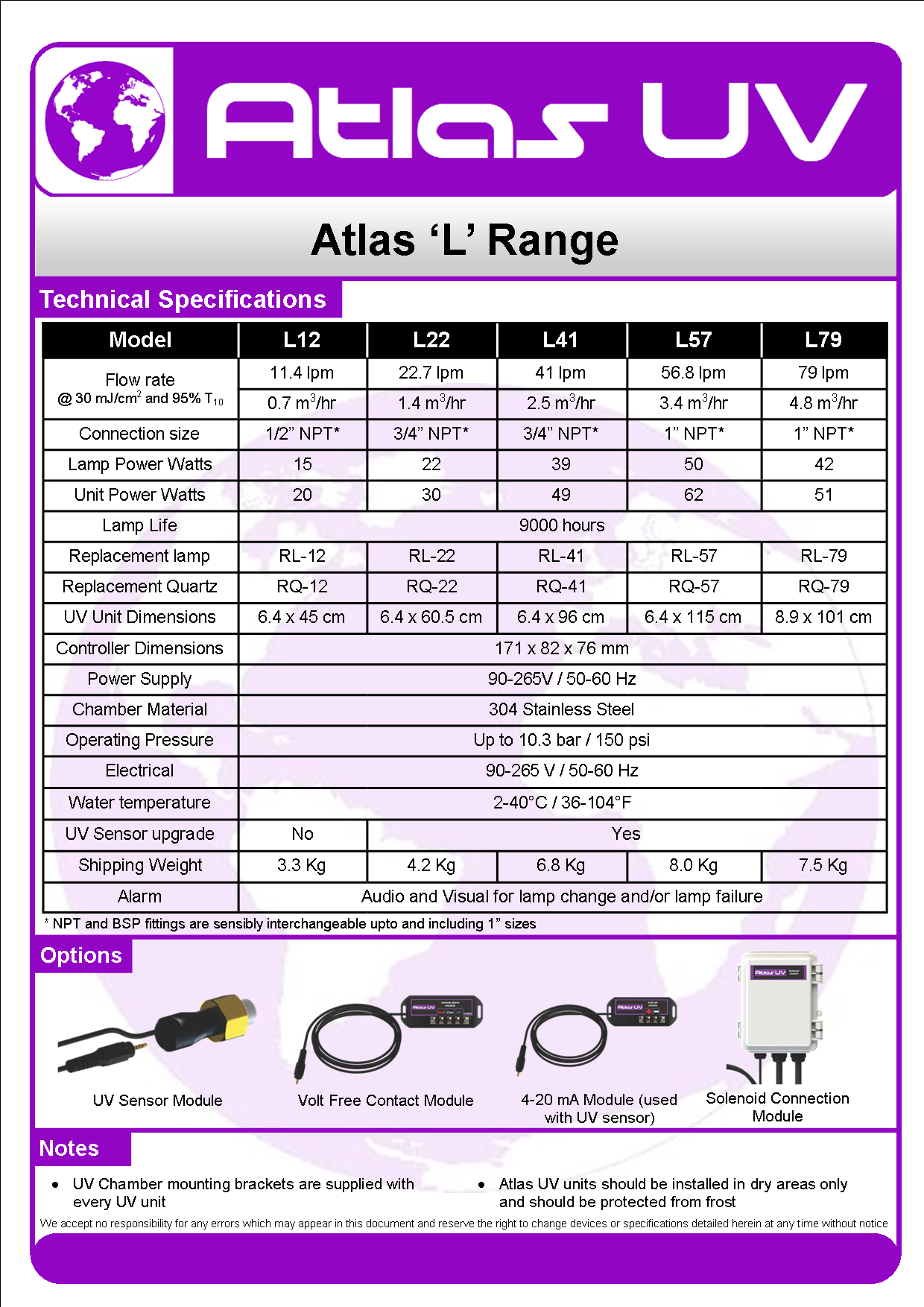

| Model | L12 | L22 | L41 | L57 | L79 |
|---|---|---|---|---|---|
| Flow rate @30 mJ/cm2 & 95% T10 |
11.4 lpm |
22.7 lpm |
41 lpm |
56.8 lpm |
79 lpm |
| 0.7 m3/hr |
1.4 m3/hr |
2.5 m3/hr |
3.4 m3/hr |
4.8 m3/hr |
|
| Connection Size | 1/2″ NPT* |
3/4″ NPT* |
3/4″ NPT* |
1″ NPT |
1″ NPT |
| Lamp Power Watts | 15 | 22 | 39 | 50 | 42 |
| UnitPower Watts | 20 | 30 | 49 | 62 | 51 |
| Lamp Life | 9000 Hours | ||||
| Replacement Lamp | RL-12 | RL-22 | RL-41 | RL-57 | RL-79 |
| Replacement Quarts | RQ-12 | RQ-22 | RQ-41 | RQ-57 | RQ-79 |
| UV Unit DImensions | 6.4 x 45 cm |
6.4 x 60.5 cm |
6.4 x 96 cm |
6.4 x 115 cm |
8.9 x 101 cm |
| Controller Dimensions | 171 x 82 x 75 mm | ||||
| Chamber Material | 304 Stainless Steel | ||||
| Operating Pressure | Up to 10.3 bar / 150 psi | ||||
| Electrical | 90-265 V / 50-60 Hz | ||||
| Water temperature | 2-40 Degrees Celsius / 36-104 Degrees Fahrenheit | ||||
| UV Sensor upgrade | No | Yes | |||
| Shipping Weight | 3.3 Kg | 4.2 Kg | 6.8 Kg | 8.0 Kg | 7.5 Kg |
| Alarm | Audio & Visual for lamp change & lamp out | ||||
* NPT and BSP fittings are sensibly interchangeable upto and including 1 sizes
