Description

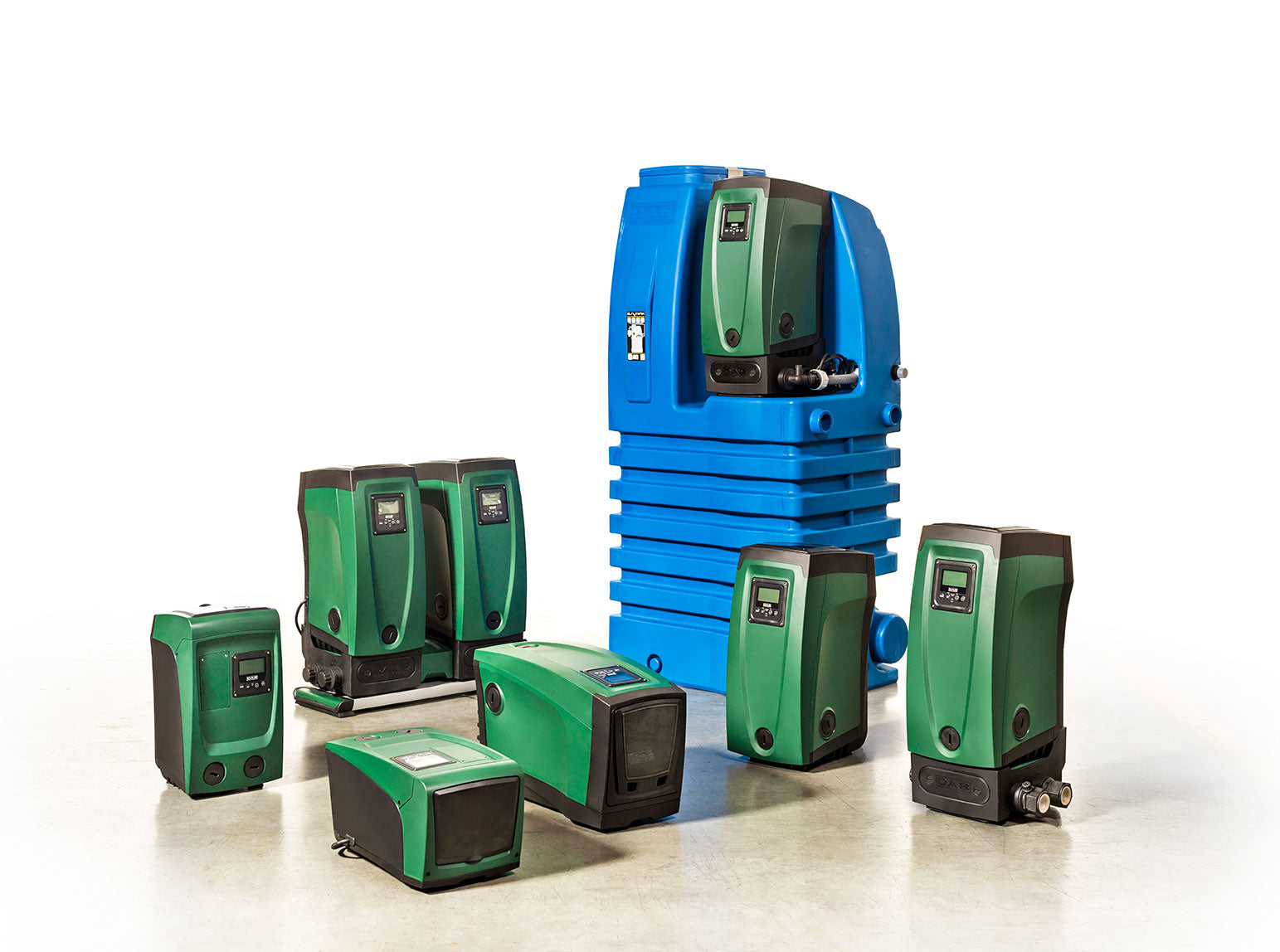

• E.Sybox Mini 3 has a different appearance than any other booster sets and is small and completely integrated. Offering a constant smooth pressure with no pressure fluctuations as can be experienced with traditional Pressure Switch & Vessel arrangements. Once you install and use it, you realise that the real difference in sound and performance. E.Sybox Mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimisation of energy consumption.Suitable for use with potable water  in domestic systems and gardening applications. The new 3-rotor model ensures further noise reduction and energy consumption .Managing the water pressure in your home has never been so simple and quiet.
• Features
  • GUARANTEES CONSISTENT WATER PRESSURE
  • ULTRA LOW NOISE
  • NO VIBRATIONS
  • REDUCED ENERGY CONSUMPTION
  • EXTREMELY COMPACT SIZES
  • INSTALLATION OPTIONS: HORIZONTAL, VERTICAL
  • WALL INSTALLATION THANKS TO E.SYWALL
  • QUICK TO INSTALL
  • EASY TO ADJUST
  • EQUIPPED WITH A LARGE DISPLAY
  • EASY MAINTENANCE
• Specification
  • Operating range: capacity up to 80 l/min; head up to 50 m
  • Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
  • Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C
  • Maximum suction depth: 8 meters
  • Maximum ambient temperature: +50°C
  • Maximum operating pressure: 7,5 bar (750 kPa)
  • Motor protection rating: IPX4
  • Insulation class: F
  • Installation: Horizontal or vertical fixed position
  • Special executions on request: alternative types of electrical plug
