Description

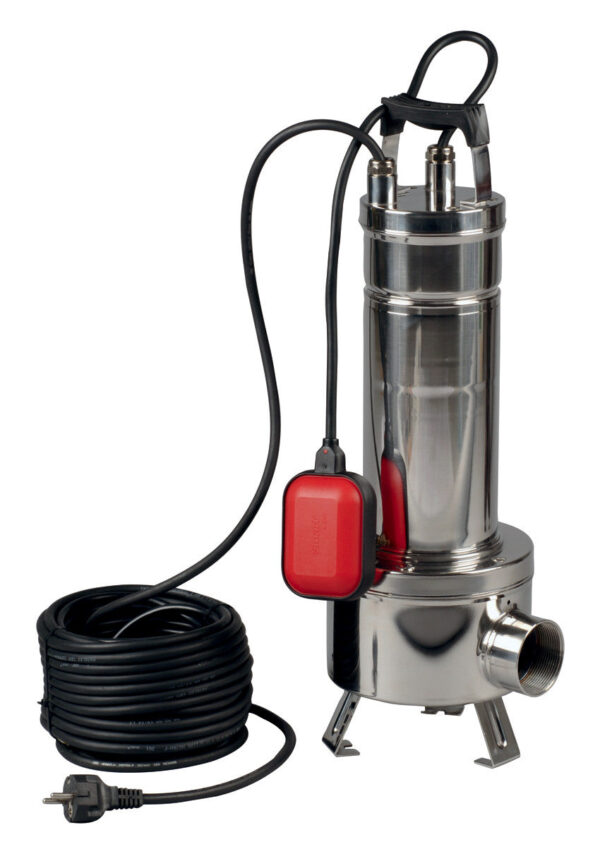

Submersible centrifugal pump with liquid vortex cast steel impeller.
Suitable for pumping sewer water and waste water containing solids up to a maximum size of
50 mm

Features:

Motor protection class: IP 68
Insulation class: F
Standard voltage:
220-240V 50Hz Single-phase
400V 50Hz Three-phase

Continual running with liquid at 35 °C and pump
completely submersible

Pumped liquid: sewer water and waste water in
general and non aggressive

Liquid temperature range: from 0°C to +35°C for
household use (EN 60335-2-41), from 0°C to +50°C
for other uses

Maximum ambient temperature for pump
running with submersible motor: +40°C

Maximum immersion depth: 10 mt
Installation: fixed or portable, vertical
Free Passage: 50 mm
