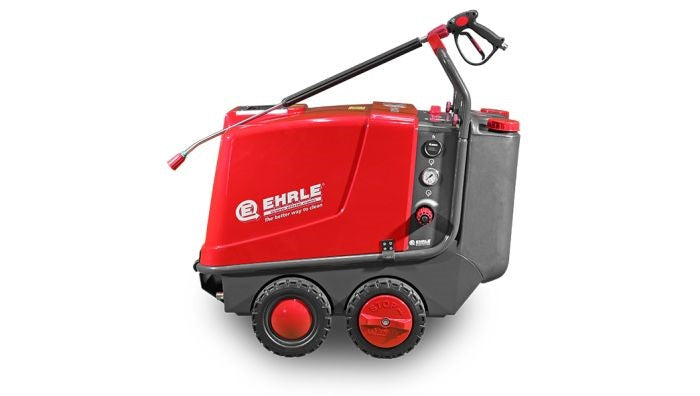

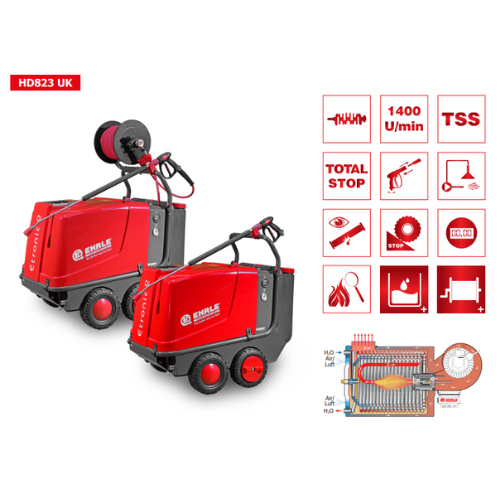

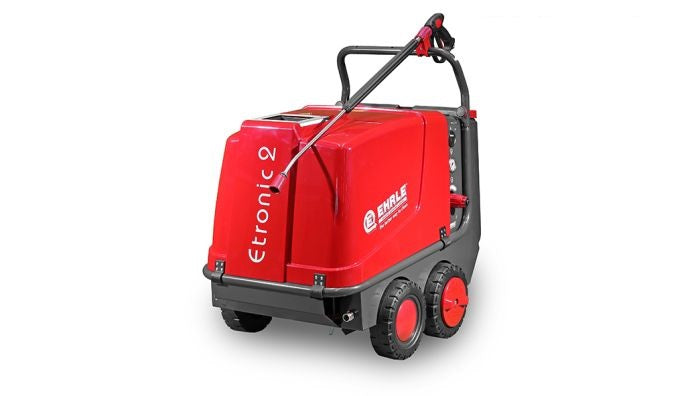

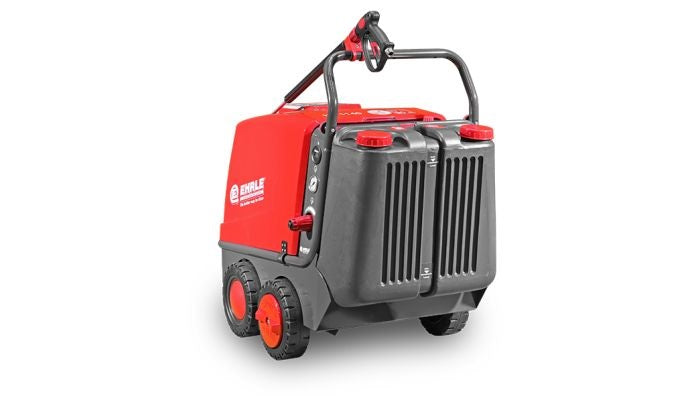

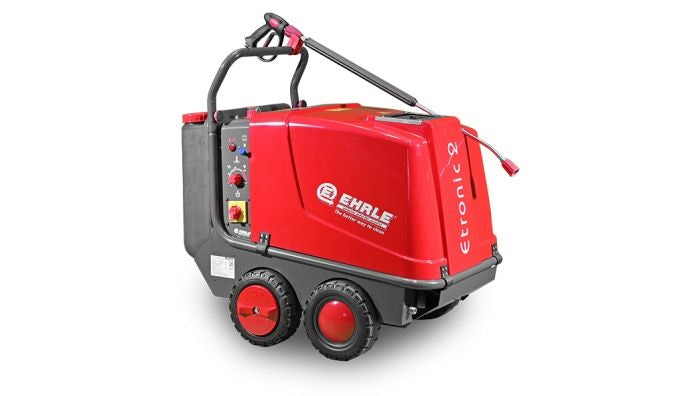

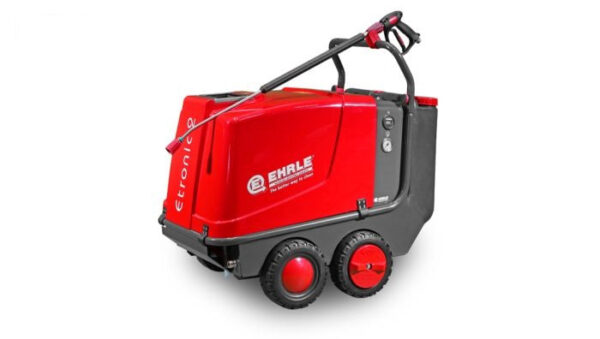

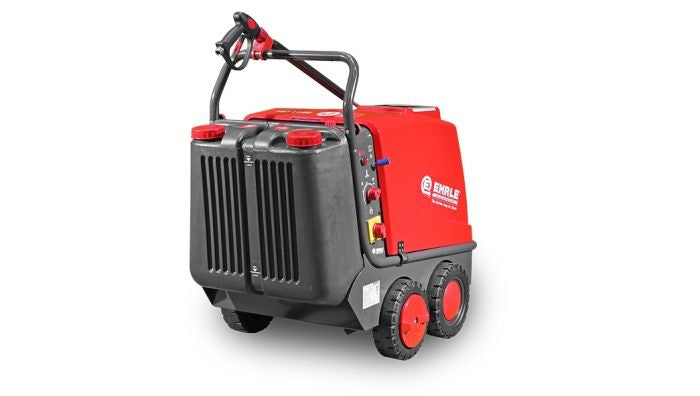

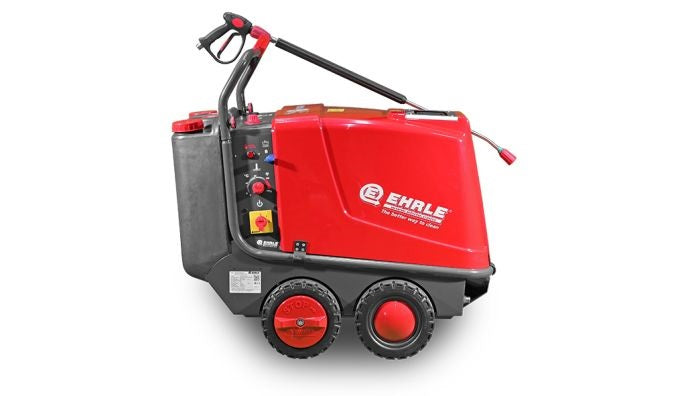

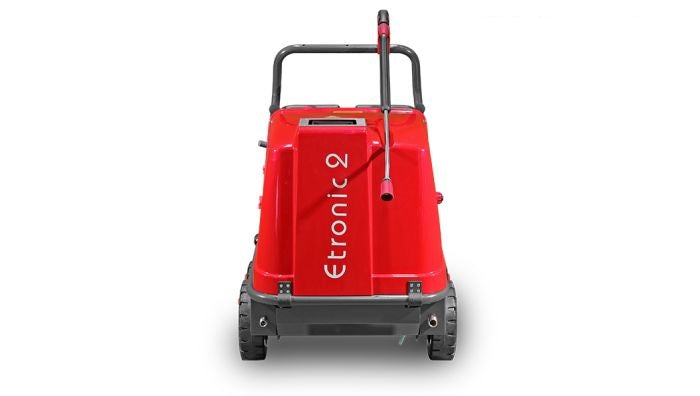

EHRLE Hot Water High Pressure Washer.

Mobile unit for professional use.

• Robust, corrosion-resistant, self-supporting device chassis
• Impact-resistant device-cover made of ABS
• Triplex-piston pump with brass pump head
• High-performance ceramic piston
• Stainless-steel valves, leakage-return
• Etronic II controls: “start-stop system with switch-off delay, total-switch-off after 20min”
• OPH-counter with service information
• Low-water cut-off,
• Low-fuel cut-off
• Optical flame monitoring with photoelectric cell and fault indicator-light
• Steam-stage
• 2 motors system (independent of the direction of rotation) separately for h.p.-pump and heating
• Unloader safety-valve



Comes With

• Infinitely variable pressure and quantity regulation
• 4 large rubber wheels for rough terrain with a patented wheel brake 2-way
• Storage possibility for all accessories
• Integrated diesel-tank 25l
• Integrated detergent-tank 20l
• Rotary on-off switch robust and lockable
• 7,5m connection cable
• Removable ergonomic drawbar.

Specification

• Voltage: 1/N/PE/AC/50Hz/240V
• Operating Pressure: 30-125bar/3-12,5MPa
• Max. Pressure: 140bar/14MPa
• Discharge capacity: 300-720l/h
• Nozzle size: 050
• Max. Inlet temperature: 30-98°C (150°C)
• Pump speed: 1400rpm
• Connected load: 3,3kW / 13A
• Electrical protection: 13A slow
