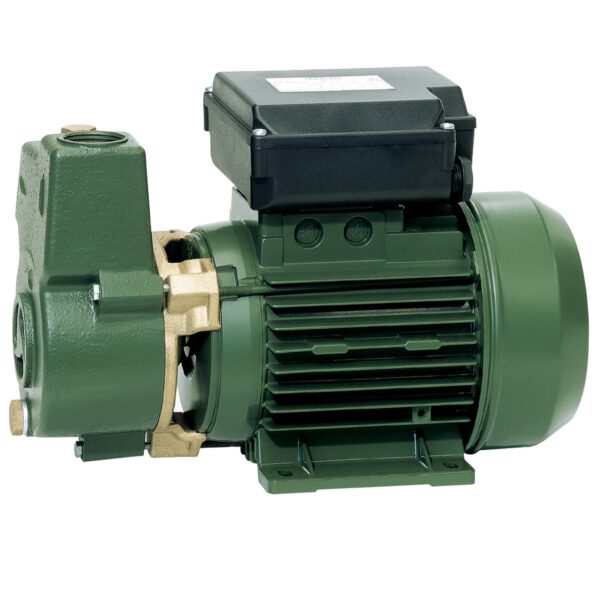

Description Self-priming peripheral pump with star impeller, with a great suction capacity. Cast iron body with brass ring. Motor support and impeller in brass to avoid the risk of blocking. Driving shaft in stainless steel. Carbon/ceramic mechanical seal. Asynchronous, closed motor, cooled by external ventilation. Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version. For the protection of the three-phase motor it is advisable to use a suitable overload protection complying with the regulations in force.
Features Operating range: from 8 to 45 l/min. with head up to 53 metres. Liquid temperature range: from -10°C to +80°C from 0°C to +35°C for domestic use. Pumped liquid characteristics: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral. Maximum ambient temperature: +40°C. Maximum working pressure: 10 bar (1000 kPa). Protection level: IP 44 (IP 55 terminal board protection). Insulation class: F.
